BR led solar outdoor light with timer design from 5W to 120W LED for choosing
10M 120W Solar Street Light High Brightness based on Africa's average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days
1. Pole Height: 10M, Plastic coated on HDG pole, resistant to wind: 150KM/H 2. Applicable light source: 120W LED, Lifespan:>80000Hrs. 3. PV Module: High efficient 200W*2PCS. 4. Gelled battery: 180Ah/12V*2PCS, Fee Maintence, Deep Cycle, Sealed Type.5.Battery Box: Engineer Steel, Bury under ground or Hanging or Toping are for choosing 6. Controller: 20A/24V MPPT controller.
| Detailed Specification for 12M-120W led solar outdoor light with timer |
| Part Name and Lifespan | Technical Specification |
| Solar Panel: Lifespan:20-25 years | 200W*2PCS Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
| Gelled Battery Lifespan:5-8 years | 180Ah/12V*2PCS, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
| Intelligent Solar Controller Lifespan:5-10 years | 20A/24V,IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later.(11-12 Hrs) |
| Light source: High Power LED Lifespan: More than 50000-100000Hrs | 120W LED, White Color,IP65, High Power, High Brightness. |
| Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
| Battery Box: | Underground,hang on the pole,tot of pole or at the bottom of the pole are choosing |
| GI Pole System: Lifespan: More than 20 years | 10M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |
BR SOLAR street light working principle
LED Light :

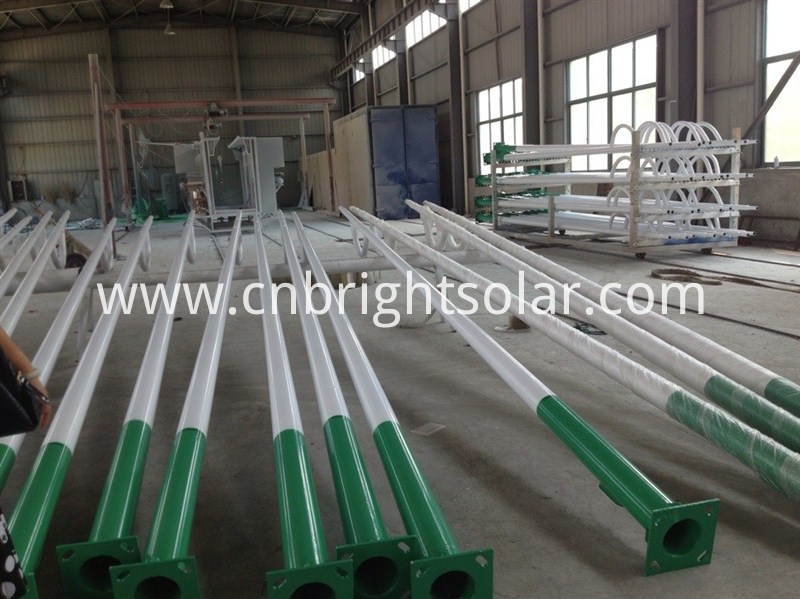

Poles:
Battery workshop:
Base founcation bolts
Charge controller IP68 rating:
BR SOLAR Detailed Packing&Laoding:
LED Light: carton packing;
PV Panel: carton and pallet packing;
Solar Battery: carton and pallet packing;
Controller: carton packing;
Pole and Brackets: bubble wrap
BR SOLAR Brief Introduction:
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our Solar Street Lights and solar panels to overseas markets more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.
Please note, our best competitive products:
10W-120W Solar LED Street Lights;
10W-240W LED Lamp and LED Housing;
Solar Panel below 300W;
6W to 3000W integrated Solar Home System;
24Ah/12V~250Ah/12V&300AH/2V-3000AH/2V Solar Battery
Looking for ideal 120W Solar Street Light Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. all the Solar Street Light High Brightness are quality guaranteed. We are China Origin Factory of 10M 120W Solar Street Light. If you have any question, please feel free to contact us.
Product Categories : Solar Street Lights > 120W Solar Street Lights
